Rotation stand

Rotation stand Rotation stand

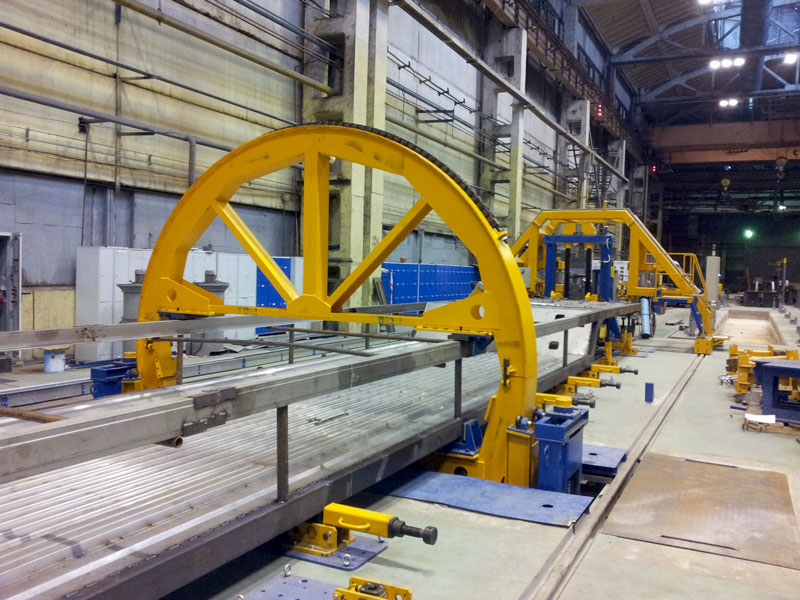

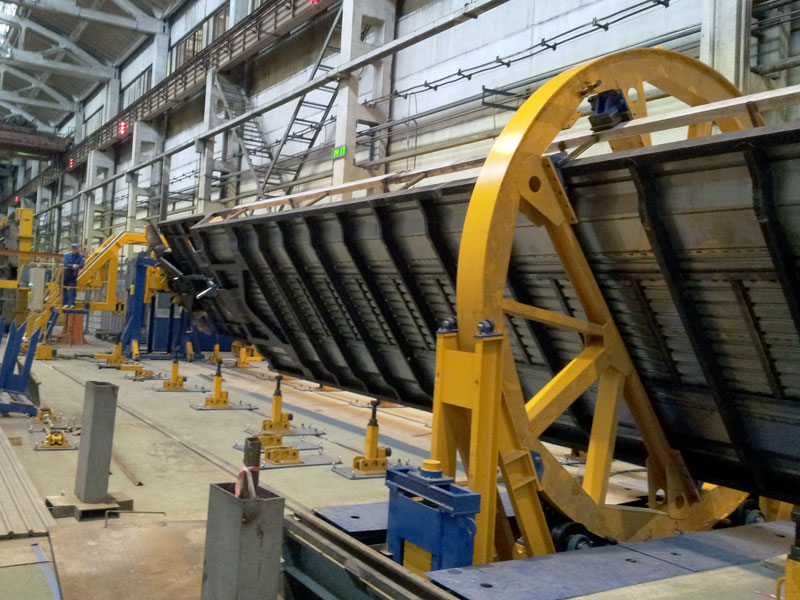

Rotation stand has been produced for welding of floor covering and undercarriage mounting to the body framing of double-deck carriages.


Video




Specifications:



1

Transfer of driven columns along the framing, mm

7500

2

Suppots adjustmen across the width, mm

500

3

Max. weight of the frame to be rotated, mm

15000

4

Max. lenth of the frame to be rotated, mm

26500

5

Max. width of the frame to be rotated, mm

3500

6

Rotation speed, mm

0,95

7

Overall dimension of the rotator, mm

31200х9550х5000

8

Weight of the rotator, kg

27479
