Multipurpose stand for assembly and welding of passenger car underframes

Multipurpose stand for assembly and welding of passenger car underframes
This stand was designed for assembly of railway car underframes of passenger car.

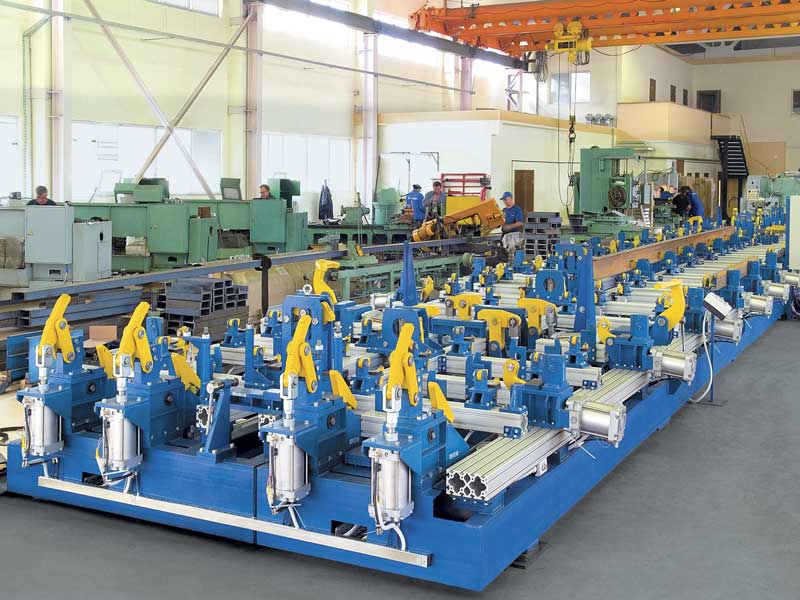

The jig is a framework where guides with T-type slots as well locators and clamping elements are fixed. While readjusting of the line for some frame dimension-type locators and clamping elements move along the T-slots. Constituents of a piece are clamped by pneumatic actuators. The use of a pneumatic system ensures a even clamping of all the constituents.


Specifications:



Index

Value

1.

Railway car underframe dimensions to be assembled, mm

Length, mm

24420

Width, mm

3100

2.

Line type

Adjustable

3.

Number of dimension-types of line

4

4.

Drives on line

Pneumatic

5.

Manufacturer of pneumatic equipment

FESTO

6.

Principal of line readjustment

Manuel

7.

Principal of line control

Manuel, with buttons

8.

Compressed air consumption per underframe, m³

0,6

9.

Compressed air pressure, MPa.

0,4 … 0,6

10.

Power consumption, Kw

0,4

11.

Dimensions of the line, mm

Length, mm

25280

Width, mm

4110

Height, mm

1320
