Multipurpose stand for metro coach roof assembly

Multipurpose stand for metro coach roof assembly

The stand is intended for assembly and welding operations for metro coach roof manufacturing. It is flexible and performs the assembly of 3 roof types.

Stand provides:

· Positioning and reliable fixation of every detail of the roof;

· Free access to weld seams;

· Ability of top roof plate resistance welding;

· Ability of sheathing plates welding (the clamping units of the stand components are folding);

· Any parts distortions caused by motion of operator with welding equipment along the sheathing plates is excluded.

Pictures of equipment

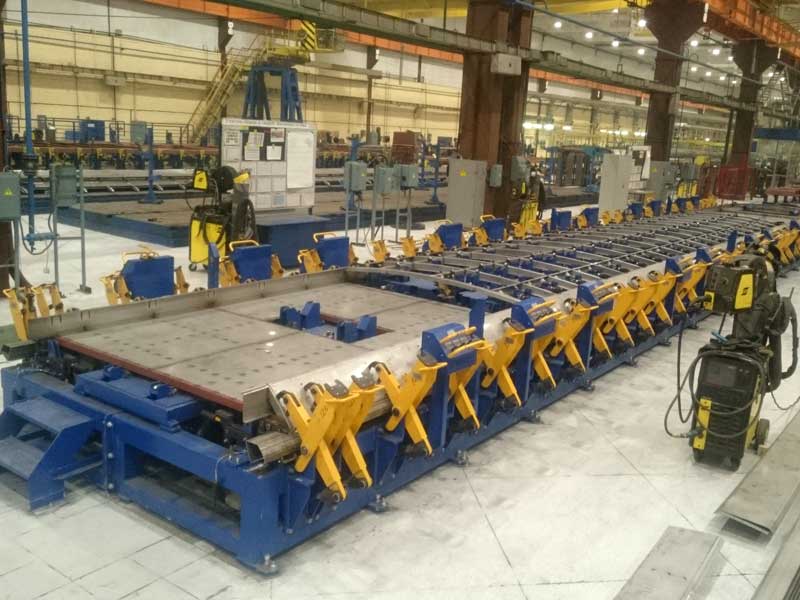

  • Multipurpose stand for metro coach rood assembly
    Multipurpose stand for metro coach rood assembly
  • Multipurpose stand for metro coach rood assembly
    Multipurpose stand for metro coach rood assembly
  • Multipurpose stand for metro coach rood assembly (fit-up assembly test)
    Multipurpose stand for metro coach rood assembly (fit-up assembly test)
  • Multipurpose stand for metro coach rood assembly (equipment testing)
    Multipurpose stand for metro coach rood assembly (equipment testing)

Technical specification

1.

Stand type

Multipurpose, flexible

2.

Working tools drive

Pneumatic

3.

Stand control principle

Manual, with joystick

4.

Air consumption cum/h

0,2

5.

Air pressure in pneumatic mains, MPa

0,6-0,8

6.

Overall dimensions, mm

19565x3405x880
