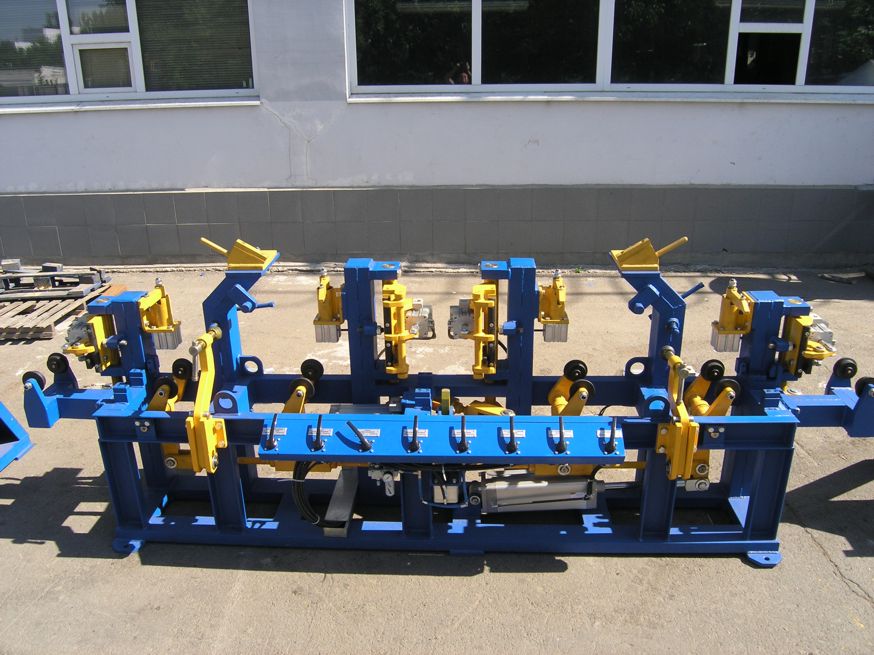

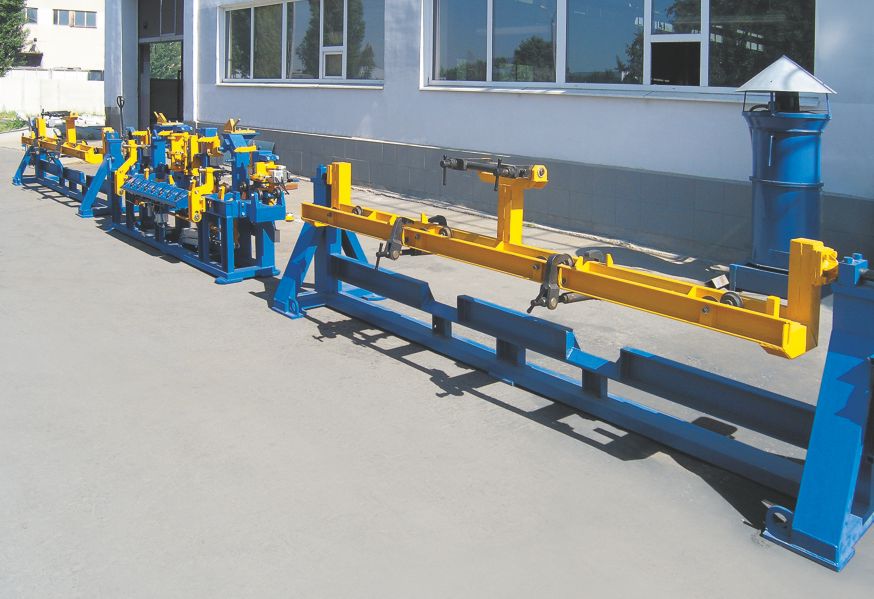

Intermediate beams assembly and welding line

Intermediate beams assembly and welding line Intermediate beams assembly and welding line

Specifications:


1.

Overall dimensions of the Item to be assembled

length

2940

width

320

height

630

2.

Item weight, kg

125

3.

Number of working places, pieces

3

4.

Mechanism of the item transfer to working places

roller conveyor

Turnover swing drive

electromechanical

5.

Rotation speed, rpm

2,1

Torque, Nm

636

Power, kW

0,25

6.

Parts fixation mechanism in the assembly stand

pneumatic

7.

Air pressure in the pneumatic line, MPa

0,6

8.

Line overall dimensions, mm

12470x880x1260

9.

Weight, kg

1800
