Stand for insulated bodies assembly

Stand for insulated bodies assembly Stand for insulated bodies assembly

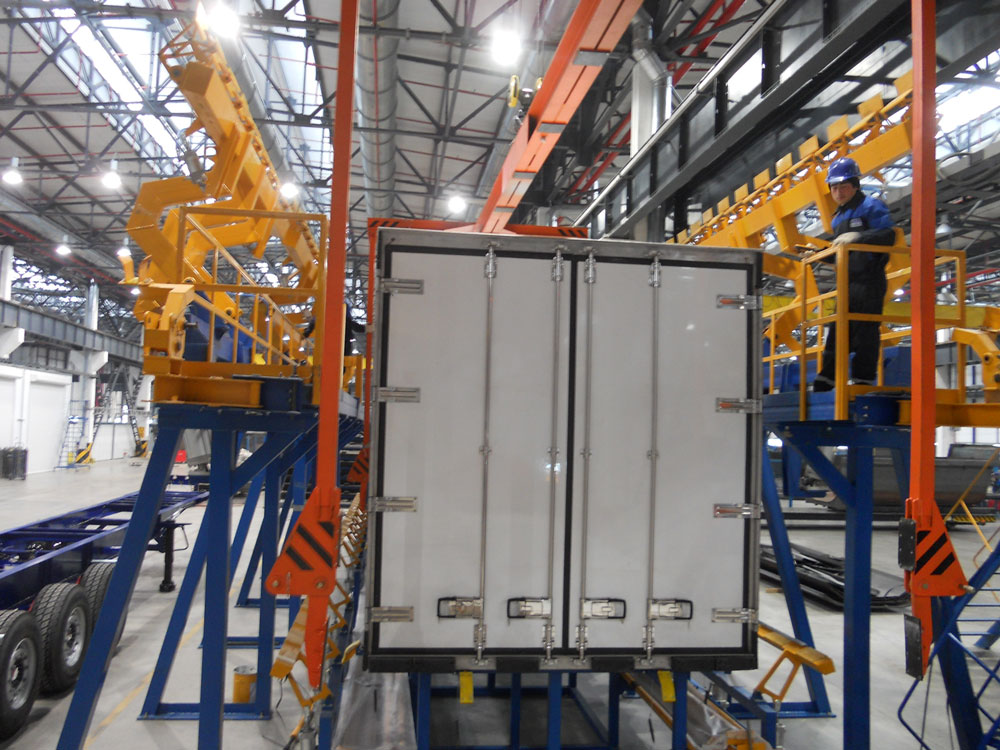

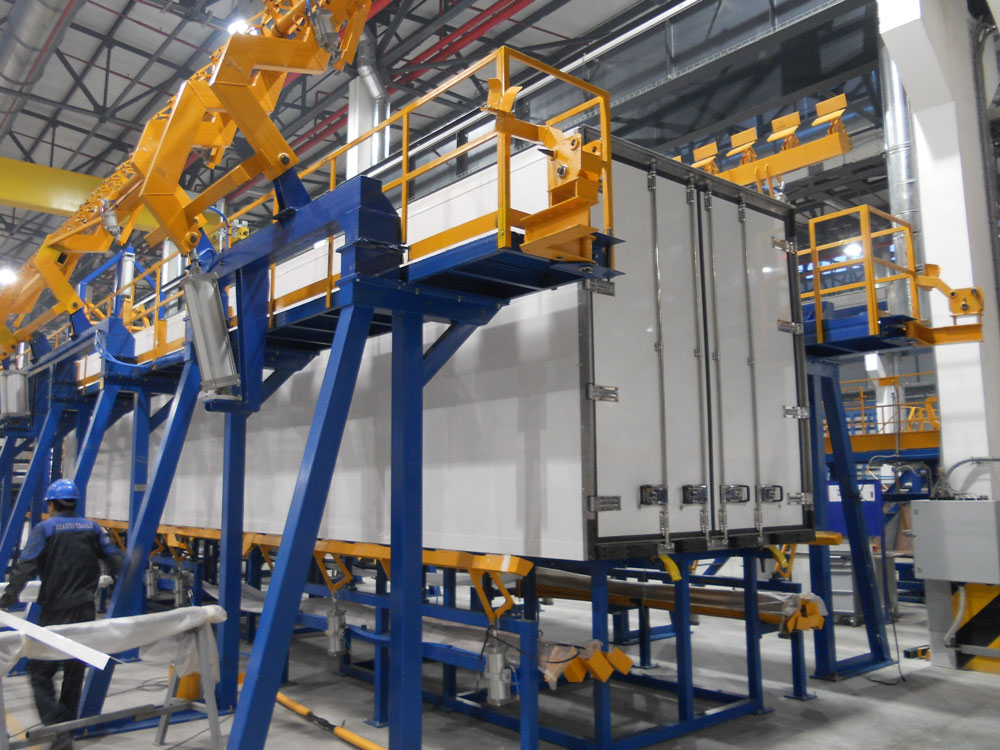

The multipurpose stand for the body assembly with lifting platforms has a possibility to assemble items of two dimension types: 8000 and 13340mm long.

The stand comprises stationary platforms on which the drop traverse beam are located - they fix and clamp upper longitudinal angles of the item. There are movable fixing devices on the platforms for fixing of the item side panels.

The stand has a panel vertical clamping device on the front size, as well as an upper angle clamping device. All the clamps work pneumatic actuators-operated, their control is performed through the pneumatic cabinet.

Specifications:


1. Overall dimensions of the item, mm 13520х2590х2750
8000х2590х2750
2. Compressed air pressure in mains, atm. 6
3. Cross-beam load capacity, kg 600
4. Overall dimensions of the stand, mm 16960х6960х7014
