Multipurpose stand of dump trucks semi-trailer frame assembly

Multipurpose stand of dump trucks semi-trailer frame assembly

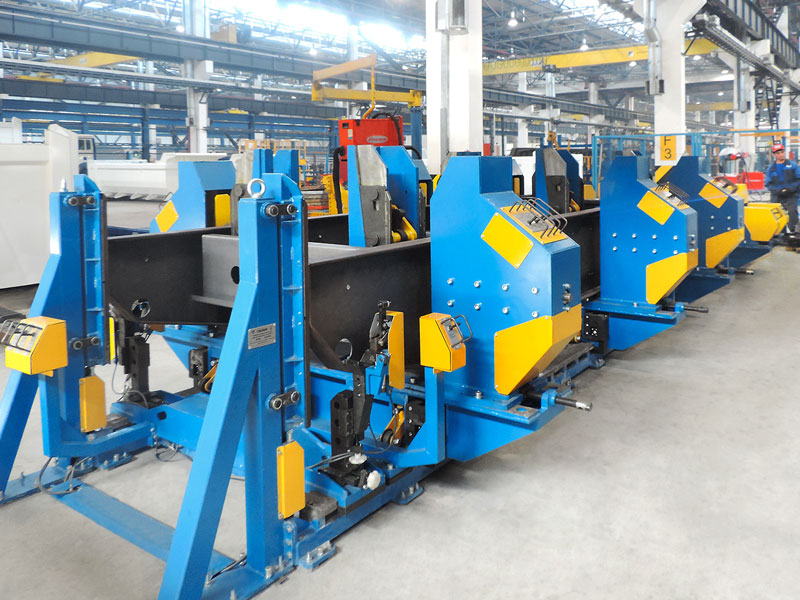

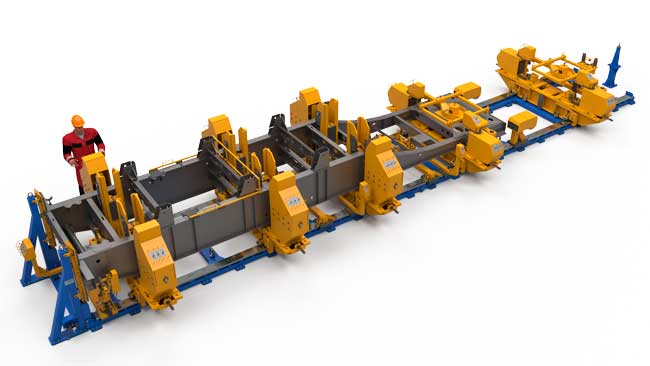

The stand provides the assembly of the frames of 3 dump truck semi-trailer frames models. Modular structure of the stand allows to carry out fast readjustment to another frame model.

The drive of basing and clamping devices is pneumatic which considerably decreases labour intensiveness and performance time of assembly process operations.



Specifications:


Maximum girder height, mm

700

Clamps type

Pneumatic, mechanical

Pneumatic clamps control method

Manual control valve

Operating pressure in the air system. MPa

0,6-0,8

Overall dimensions of the stand, mm

13750х3294х1602

Weight, kg

11535
