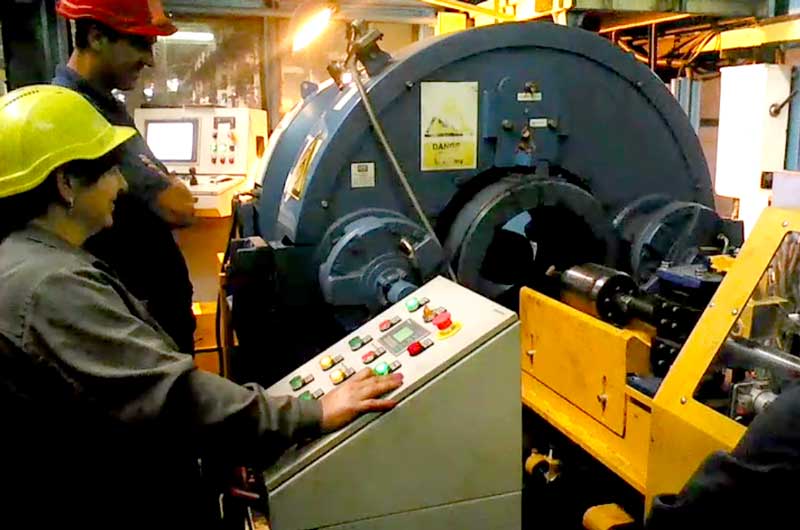

Pipes inner diameter control plant

Pipes inner diameter control plant

The plant is intended for control of pipes drift diameter with outer diameter from 139 to 340 mm after power coupling.

Specifications:

1.

Height adjustable tray with a stop for pipes

Tray height adjustment

manual

Travel type

Screw-and-nut transmission

Stop adjustment

manual

2.

Pipes inner diameter control plant from the pipe coupling end

Push rod trolley travel drive type

electromechanical

Travel type

Rack-and-pinion steering gear

Carriage travel speed, m/sec

0,2…3 (continuously adjustable)

Max. push rod trolley travel, mm

150
