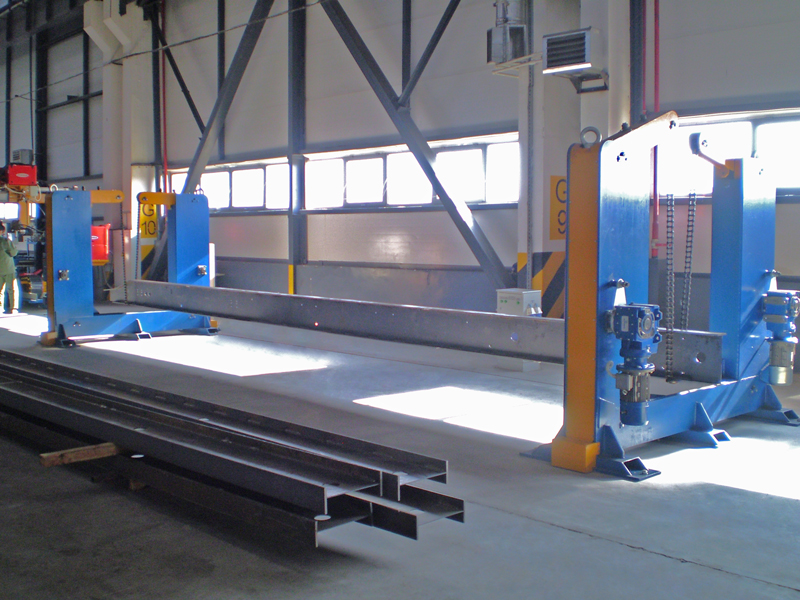

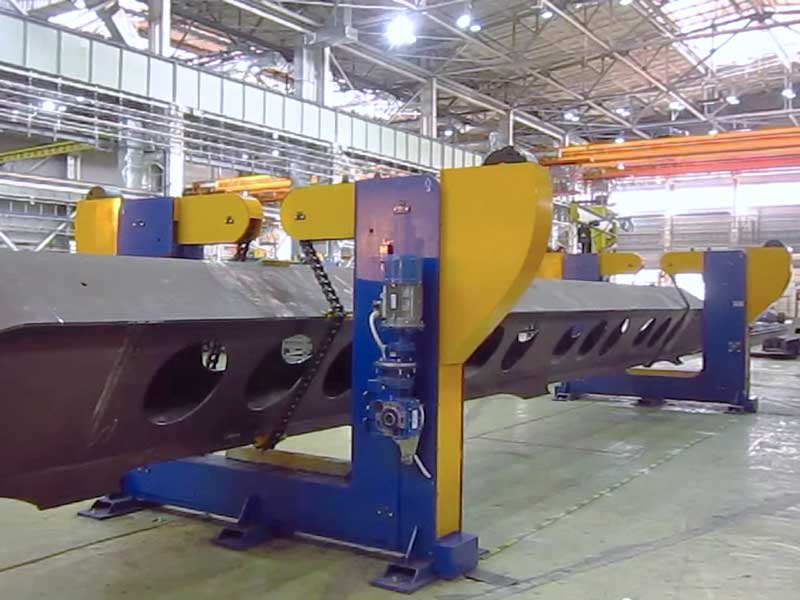

Welding Rotator

Welding Rotator Welding Rotator

The welding rotator has been designed for positioning of welded metal work for convenient welding and other types of work, requiring metal work sway.

Advantages

  • Convenient welding position, which results in higher weld seam quality;
  • Using of the crane only for product loading / unloading;
  • Quick positioning of the product reduces the welding cycle time, increases productivity;
  • Ability of clockwise and anti-clockwise rotation;
  • The product can be positioned at convenient height.


Technical Specification

No.

Index

Value

KC-600

KC-1000

KC-1500

1

Overall dimensions of handling workpiece, mm

2

Width, mm

600

1000

1500

3

Height, mm

600

1000

1500

4

Length (min), mm

1500-12000

5

Max load capacity, Kgs

6000

12000

15000

6

Rotation Speed, RPM

1,5

1,5

1,2

7

Rotating drive

Chain

8

Installed capacity, Kw

12

16

18

9

Overall dimensions of the rotator, mm

Length

Width

Height

10200

2200

2500

10000

2620

2990

10200

3100

3400

10

Weight, kg

3000

3470

5000
