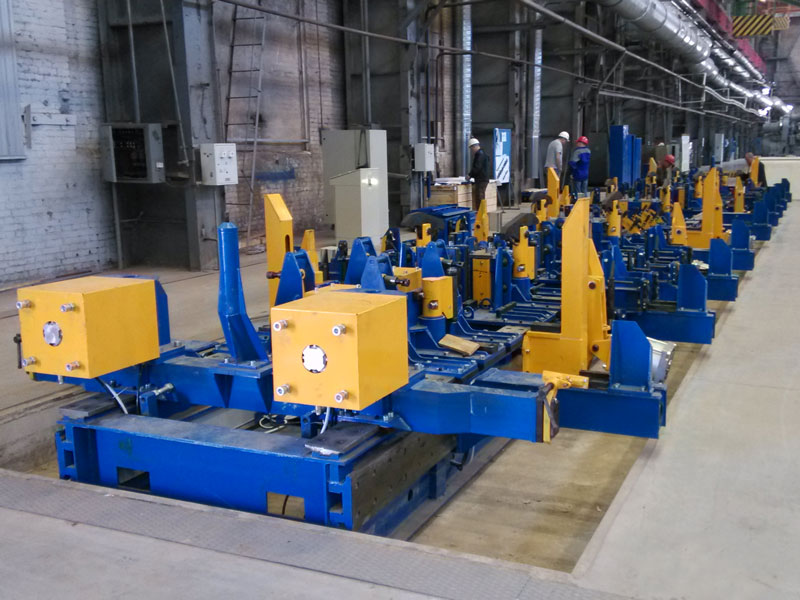

Multipurpose stand for mainline locomotive underframe assembly

Multipurpose stand for mainline locomotive underframe assembly

The multipurpose underframe assembly stand is flexible and performs assembly of various types of mainline locomotive underframes.


Specifications:

1.

Stand type

flexible

2.

Side-members clamping

pneumatic

3.

Cross-members clamping

spring

4.

Pneumatic drives control

electrical, buttons

5.

Air pressure in pneumatic system, MPa

0,6…0,8

6.

Air consumption m³⁄ h

9

7.

Overall dimensions of the stand, mm:

length

20185

width

3790

height

1650

8.

Weight of the stand, kg

35505
