Robotic center for metro car roof welding

Robotic center for metro car roof welding Robotic center for metro car roof welding

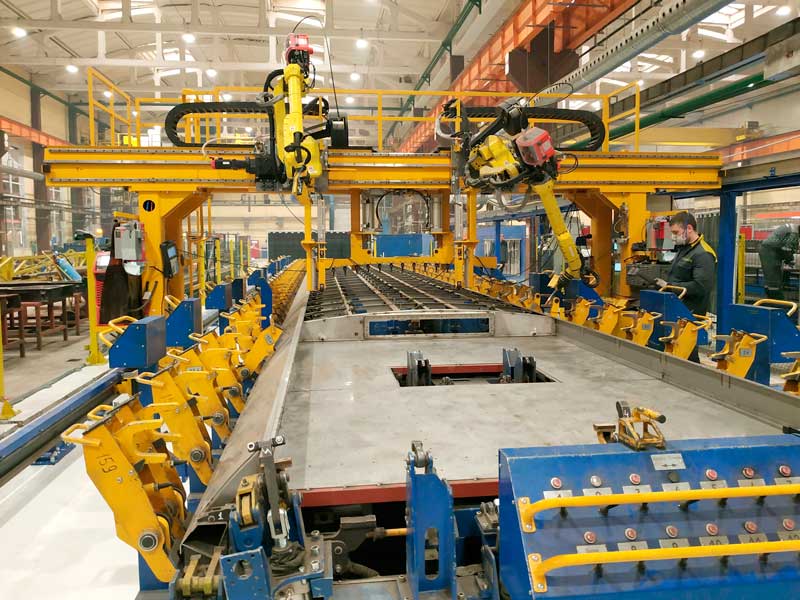

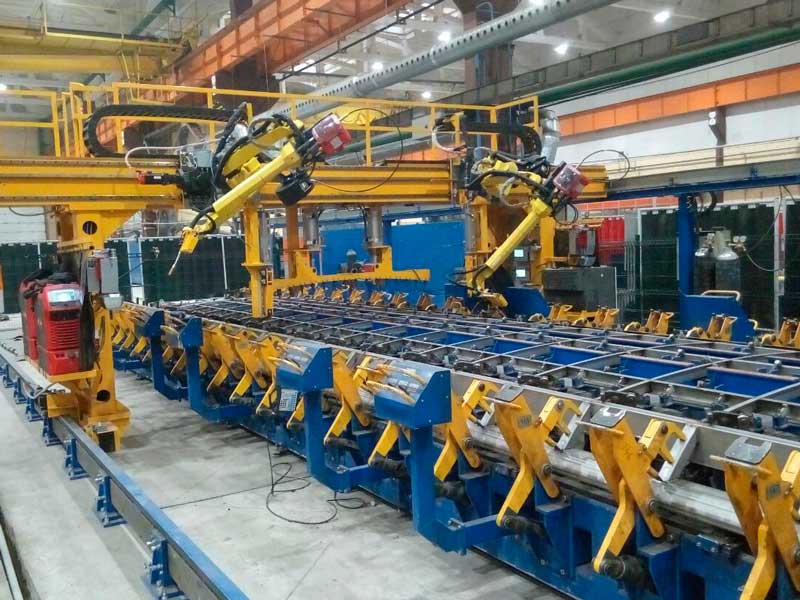

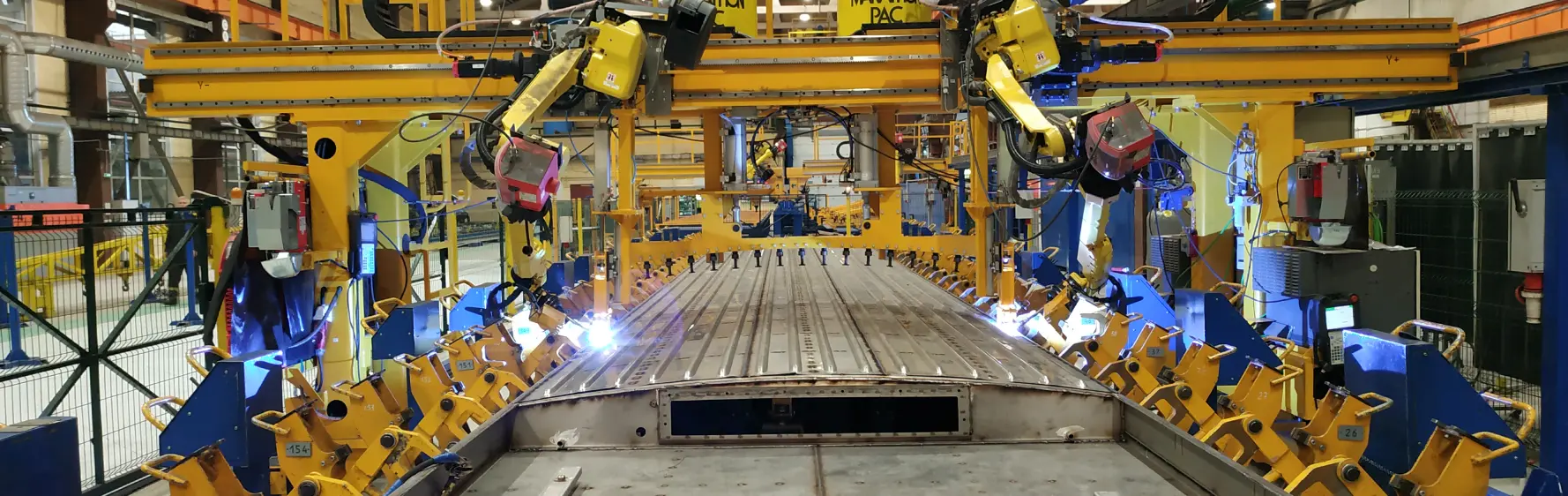

The robotic center is designed to perform assembly and welding on the manufacture of metro car roofs, is re-adjustable and provides assembly for welding of 2 roof models. To ensure the assembly of roof frames of two types, the center is equipped with removable jigs. The jig is installed on the supporting surfaces of the base on the pins in a strictly fixed position. The constituent elements of the roof frame are laid on the supporting surfaces of the stand according to the manufacturing process, where they are fixed by stops and welding. At the end of the roof frame welding, the groups of clamps are released, which provides further laying of the sheathing sheets. Resistance welding of sheathing sheets to the roof frame is carried out.

Video



The robotic center provides:

  • positioning and reliable fixation of each roof part;
  • free access to weld seams locations;
  • possibility of resistance welding of the top sheet of the roof;
  • possibility of welding sheathing sheets (while the clamping units of the frame parts are folding);
  • excludes deformation of parts when the welder moves along the sheathing sheets with welding equipment.
Robotic center for metro car roof welding

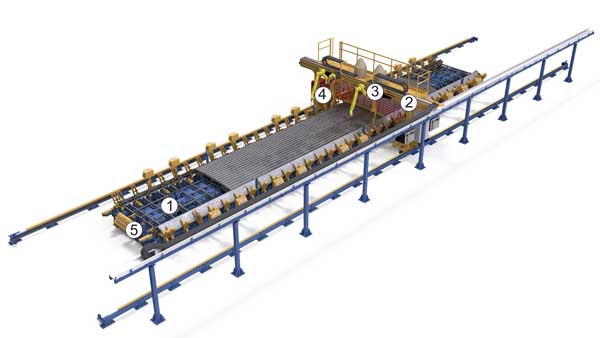

1. Stand
2. Gantry
3. Welding robot

4. Welding equipment
5. Control panel




Specifications:



1.

Stand type

Multipurpose, adjustable

2.

Drive of working units

pneumatic

3.

Stand control principle

Manual, with a joystick

4.

Air consumption, m3 / hour

0,2

5.

Air pressure in the pneumatic system, MPa

0,6-0,8

6.

Gantry with manipulators for welding



Gantry travel drive

electromechanical

Inoperative speed of the gantry, m / min

10,0…15,0

Welding speed, m / min

0,1…1,0

Clamp drive

pneumatic

Welding source model

TPS 500i, Fronius

Quantity of welding sources

2

Welding type

MIG/MAG

7.

Robot Fanuc AM 100iC/8L



Manipulators quantity

2

Working radius, mm

2028

Number of degrees of freedom

6

Positioning accuracy, mm

0,08

6.

Overall dimensions, mm

27916х9745х3278
