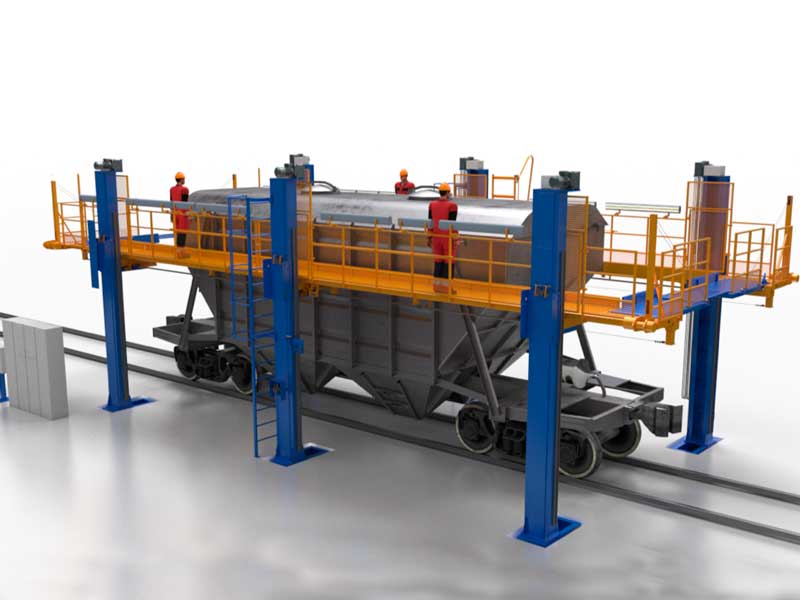

Roof installation stand
The stand is designed for installation and welding of the roof onto the wagon body.
Specifications:
|
1. |
Platform deck height , mm |
3000* |
|
Side platform size (length x width), mm |
20000x800* |
|
|
Quantity, pcs. |
2 |
|
|
Load capacity, kg |
500 |
|
|
2. |
End platform size (length x width), m |
1730x800* |
|
Load capacity max, kg |
150 |
|
|
Quantity, pcs. |
4 |
|
|
Distance from the platform to the side surface of the body, mm |
100 |
|
|
3. |
Illumination level of the working area, lx |
700 |
|
4. |
Weight, kg |
7500* |
